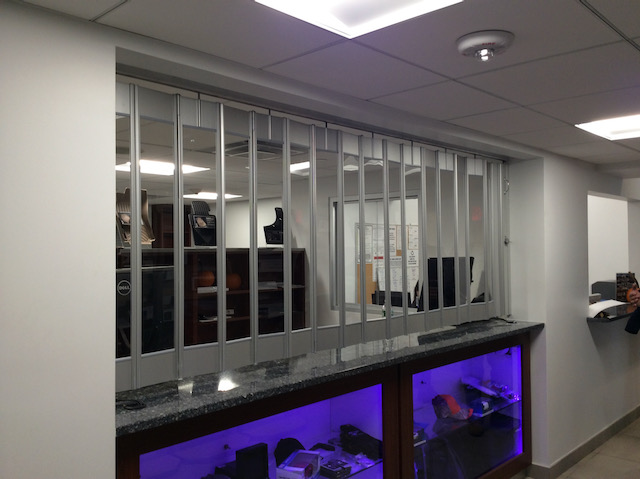

Model 860
Elegant Transparency with Customizable Security
The ADT Model 860 Polycarbonate Panel Grille offers a refined solution for environments that require both visibility and protection. Designed with clear LEXAN™ polycarbonate panels framed in anodized aluminum, this grille delivers high visibility and graceful aesthetics without compromising strength. For enhanced security, solid aluminum panels can be substituted, making the Model 880 adaptable to a wide range of architectural needs.
Ideal for retail, institutional, and commercial spaces, the Model 880 combines beauty, function, and flexibility in one elegant package.
Description
Model 860 – Polycarbonate Panel Side Folding Grille
Applications
- Retail storefronts
- Schools and universities
- Hospitals and clinics
- Office buildings
- Reception areas
Curtain Construction
- Panels framed by 4″ high bottom plates and 5¼” high top plates
- Each panel is 6 5/16″ wide, constructed with 1/8″ x 5/8″ x 6″ horizontal clear anodized aluminum links
- Links slide into 5/16″ vertical rods and are secured with ½” clear anodized aluminum spacer tubes on alternate rods
- Standard panels: 1/8″ LEXAN™ polycarbonate
- Optional upgrade: Solid aluminum panels for increased security
- Anodized finish only for this series
Track System
- Heavy-duty extruded aluminum track: 1 3/8″ wide x 1 5/8″ high
- Trolley assemblies: 1 1/8″, adjustable vertically without curtain removal
- Standard curve options: 90°, 120°, 135°, and 150° with 14″ radius
- Custom curves available upon request
Locking Options
- Lead Post:Conceals hook bolt lock with keyed cylinder or thumb turn; engages full-height wall channel
- Intermediate Posts: Provided every 10′ (or 6′ for countertop applications) and at each curve; includes adjustable concealed spring-loaded drop bolt with keyed cylinder locks and dustproof floor sockets
- Traveling End Post: Features full-height protection plate; self-locks into steel V-stop; fixable to wall when stacked in opening
- Top & Bottom Locking Posts: Available for enhanced security
Finish
- Standard: Clear anodized aluminum
- Custom finishes not available for this model
Features & Benefits
- Transparent polycarbonate panels for high visibility
- Optional solid aluminum panels for added security
- Durable anodized aluminum framing for long-term performance
- Smooth, quiet operation with adjustable trolley assemblies
- Multiple locking configurations for secure closure
- Customizable track curves for flexible layouts
- Ideal for blending openness with protection
