Model 880
Semi-Transparent Security with Architectural Versatility

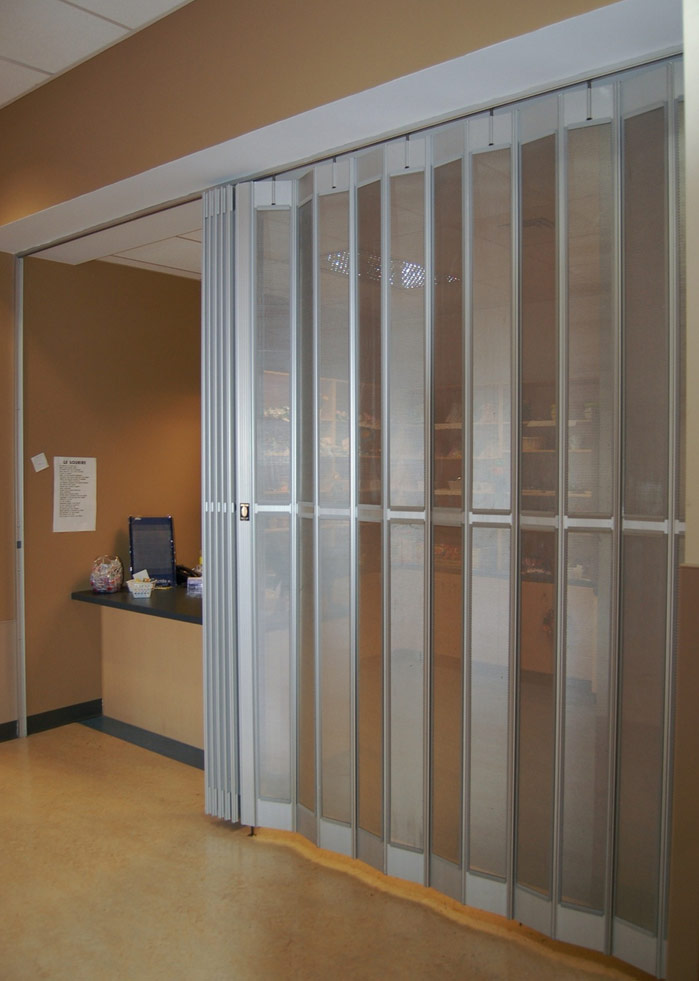

The ADT Model 880 Perforated Panel Grille blends the strength of steel with the openness of glass. Designed with micro-perforated steel panels framed in anodized aluminum, this grille offers a secure yet breathable barrier that allows light and air to pass through. Its semi-opacity makes it ideal for environments where visibility, airflow, and aesthetics are equally important.
Perfect for retail, institutional, and commercial spaces, the Model 885 delivers a sleek, modern look with dependable performance and flexible layout options.
Description
Model 880 – Perforated Panel Side Folding Grille
Applications
- Retail storefronts
• Schools and universities
• Hospitals and clinics
• Office buildings
• Public facilities
Curtain Construction
- Micro-perforated steel panels framed by 4″ high bottom plates and 5¼” high top plates
• Each panel is 6 5/16″ wide, constructed with 1/8″ x 5/8″ x 6″ horizontal clear anodized aluminum links
• Links slide into 5/16″ vertical rods and are secured with ½” clear anodized aluminum spacer tubes on alternate rods
• Anodized finish only for this series
Track System
- Heavy-duty extruded aluminum track: 1 3/8″ wide x 1 5/8″ high
• Trolley assemblies: 1 1/8″, adjustable vertically without curtain removal
• Standard curve options: 90°, 120°, 135°, and 150° with 14″ radius
• Custom curves available upon request
Locking Options
- Lead Post:Conceals hook bolt lock with keyed cylinder or thumb turn; engages full-height wall channel
• Intermediate Posts: Provided every 10′ (or 6′ for countertop applications) and at each curve; includes adjustable concealed spring-loaded drop bolt with keyed cylinder locks and dustproof floor sockets
• Traveling End Post: Features full-height protection plate; self-locks into steel V-stop; fixable to wall when stacked in opening
• Top & Bottom Locking Posts: Available for enhanced security
Finish
- Standard: Clear anodized aluminum
• Custom finishes not available for this model
Features & Benefits
• Micro-perforated panels allow light and airflow while maintaining security
• Durable anodized aluminum framing for long-term performance
• Smooth, quiet operation with adjustable trolley assemblies
• Multiple locking configurations for secure closure
• Customizable track curves for flexible layouts
• Ideal for blending visibility, ventilation, and protection
